water pressure Tube expanding machine

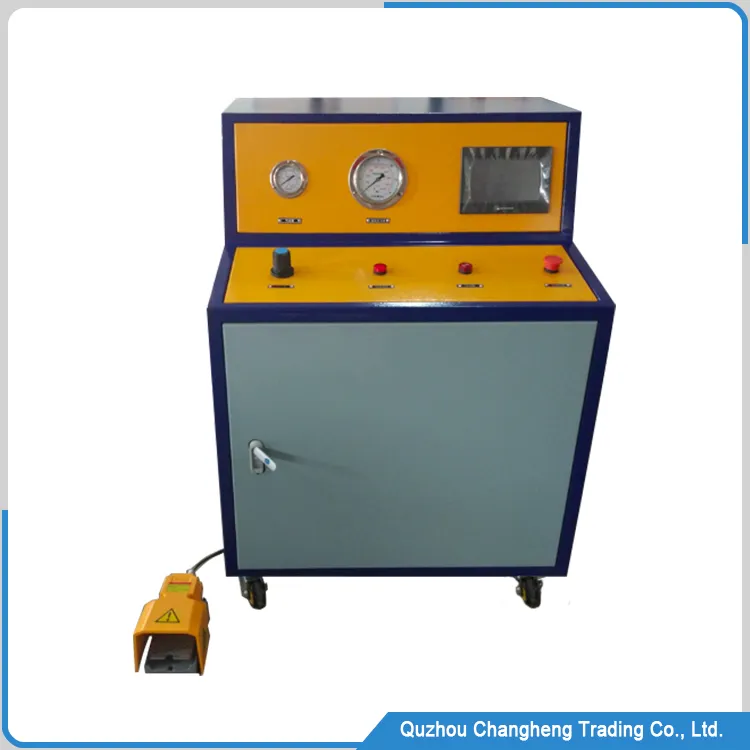

Machine Overview

The water pressure Tube expanding machine is special equipment used in the heat exchanger industry. It consists of a control system, a pressurization system, and special tools for pipes.

The water pressure expansion machine is equipped with a 7-inch touch screen for setting up PLC intelligent control of expansion pressure and automatic operation.

The boosting system adopts two high-pressure liquid boosters with a maximum pressure of up to 80mpa. It can expand stainless steel 304 pipes, and aluminum and copper pipes can also be easily expanded

Water pressure Tube expanding machine characteristic

1, The holding time and expansion pressure can be set arbitrarily through the touch screen, ensuring the quality of expansion by producing pipes with different raw materials;

2, This machine is equipped with a button switch and a foot switch. Two types of control can facilitate worker operations

3, The medium inside the pipe is tap water, and the pressure rises and releases quickly, doubling the expansion speed

4, The tools on both sides of the pipe are designed for quick installation, so there is no need to worry about the tools falling off during high-pressure production

5, The appearance of this machine is made of metal plate bending technology, and the connection position is laser welding, which is very solid and durable

Tube expanding technical parameter

No.	ITEM	DATA
1	Rated expansion pressure	0-80 MPa
2	Maximum test pressure	80 MPa
3	Expansion speed:	about 1 piece/min
4	Expansion medium	water
5	Control system	PLC
6	Workstation	1 station
7	Tube material	aluminum SS304 copper
