Summarize
Radiator making machine is a concept, usually, a factory that produces aluminum radiators consists of multiple machines, each machine completing different production tasks, from raw materials to final product assembly and inspection, and finally producing complete radiators
With the continuous development of the automotive industry, the demand for the automotive aftermarket has also increased. Many people want to start manufacturing aluminum radiators. This article mainly discusses what machines are needed for a factory with the smallest unit of aluminum radiators
Radiator Making Machine List
Radiator leak testing machine Manufacturers and suppliers
Machine Overview This type of radiator leak testing machine injects compressed air into the interior of the radiator and then maintains pressure to determine if…
Radiator clinching machine
Machine outline This radiator clinching machine is mainly driven by servo motors and cylinders, allowing engineers to customize work steps to achieve automatic obstacle avoidance….

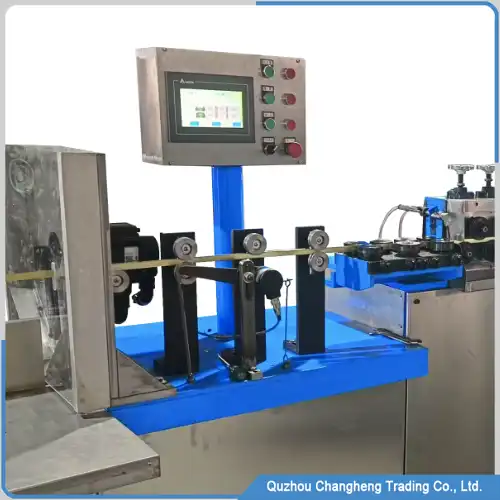

aluminum tube making machine of High-frequency welding
Machine Overview The high-frequency welding aluminum tube making machine is an automated equipment for producing automotive radiator pipes. The main process flow includes: uncoiling, forming,…
radiator core assembly machine
Equipment outline The Radiator core assembly machine is a device used for assembling heat exchanger cores and heat dissipation belts in automotive radiators, condensers, intercoolers,…
core assembly machine of radiator | intercooler core builder
Machine Overview The fully automatic core assembly machine combines mechanical automation technology and also includes the function of manual screw adjustment. The design of this…
Intercooler core assembly machine
Equipment Overview The intercooler core assembly machine is a device used to produce intercoolers in trucks. Its main driving method is a servo motor, and…
Fin roller machine of radiator and condenser
Machine Outline The radiator fin roller machine, as the core equipment for processing condensers, radiators, and intercoolers, has a total power of 3.5kw, demonstrating strong…
Radiator crimping machine for cars and trucks
Machine Overview The main function of this radiator crimping machine is to combine the head plate, sealing gasket, and plastic tank together to form a…
| No. | Machine name | Unit |
| 1 | brazing furnace | 1 |
| 2 | fin making machine | 1 |
| 3 | core assembly machine | 1 |
| 4 | Radiator crimping machine | 1 |
| 5 | Leakage testing machine | 1 |
| 6 | Plastic tank injection mold | many |
| 7 | Plastic injection machine | 1 |
| 8 | stamping machine | 3 |
| 9 | stamping mold | many |
| 10 | liquid nitrogen tank | 1 |
Radiator fin-making machine
This machine is used to produce cooling fins, which are driven by electric motors and roller molds. Aluminum raw materials are rolled to form fins, which are then automatically cut according to the set length. This machine is essential in the production process of radiators
The roller mold of this radiator manufacture machine is independently designed, and customers can replace different molds according to different truck and car radiator sizes, in a low-cost way to improve economic efficiency
Aluminum core assembly machine
This machine is an important equipment for producing car radiators. A cylinder drives it and is very energy-efficient during the production process. A skilled worker can produce 200 aluminum cores in 8 hours
The maximum working size of this radiator aluminum core assembly machine is 800 * 800mm, and it can produce almost all car radiators
If your factory needs to produce truck radiators, you can choose a machine with a working size of 1200 * 1200mm, which is driven by a servo motor
Plastic tank crimping machine
This machine assembles aluminum cores and plastic tanks together. It is driven by servo motors to drive screws, allowing four robotic arms to work together,
The control system allows engineers to set work steps arbitrarily, avoiding the irregular obstacles of plastic tanks and adapting to the radiators of different vehicle models
The working size of this radiator crimping machine is approximately 800 * 800mm, which can use 95% of car radiators. The working size of another machine is 1200 * 1200mm, which is used for producing radiators for trucks and engineering vehicles
Aluminum brazing furnace
The function of this brazing furnace is to weld multiple parts of the aluminum core together through high-temperature welding. It is a fully automatic production equipment protected by nitrogen gas,
We can customize this equipment according to the production capacity of your factory and the size of the aluminum core, which fully meets your production needs
Aluminum brazing is a crucial technology in the entire production process of aluminum radiators. We provide all technical training services to ensure the smooth progress of your project
Other radiator-making machines
Plastic tank injection mold
This is a mold that produces plastic tanks for radiators
Plastic injection machine
This machine is used to produce plastic tanks with radiators
Leakage testing machinery
This machine is used to test for leaks in aluminum radiators
Manual press machine
This machine is used for repairing radiators
Our services
- Technical training
We will provide all technical training and support on how to use these machines correctly and produce high-quality radiators
- product design
Whether you are planning to produce car aluminum radiators or car condensers, we can provide you with product design services
- One-stop machine purchase
We provide all the mechanical equipment for producing automotive radiators and condensers, allowing you to purchase them in one place and quickly start new projects
- Installation and debugging
We provide installation and commissioning services for all machines, enabling your new factory to produce high-quality radiators quickly
